1. Product Overview

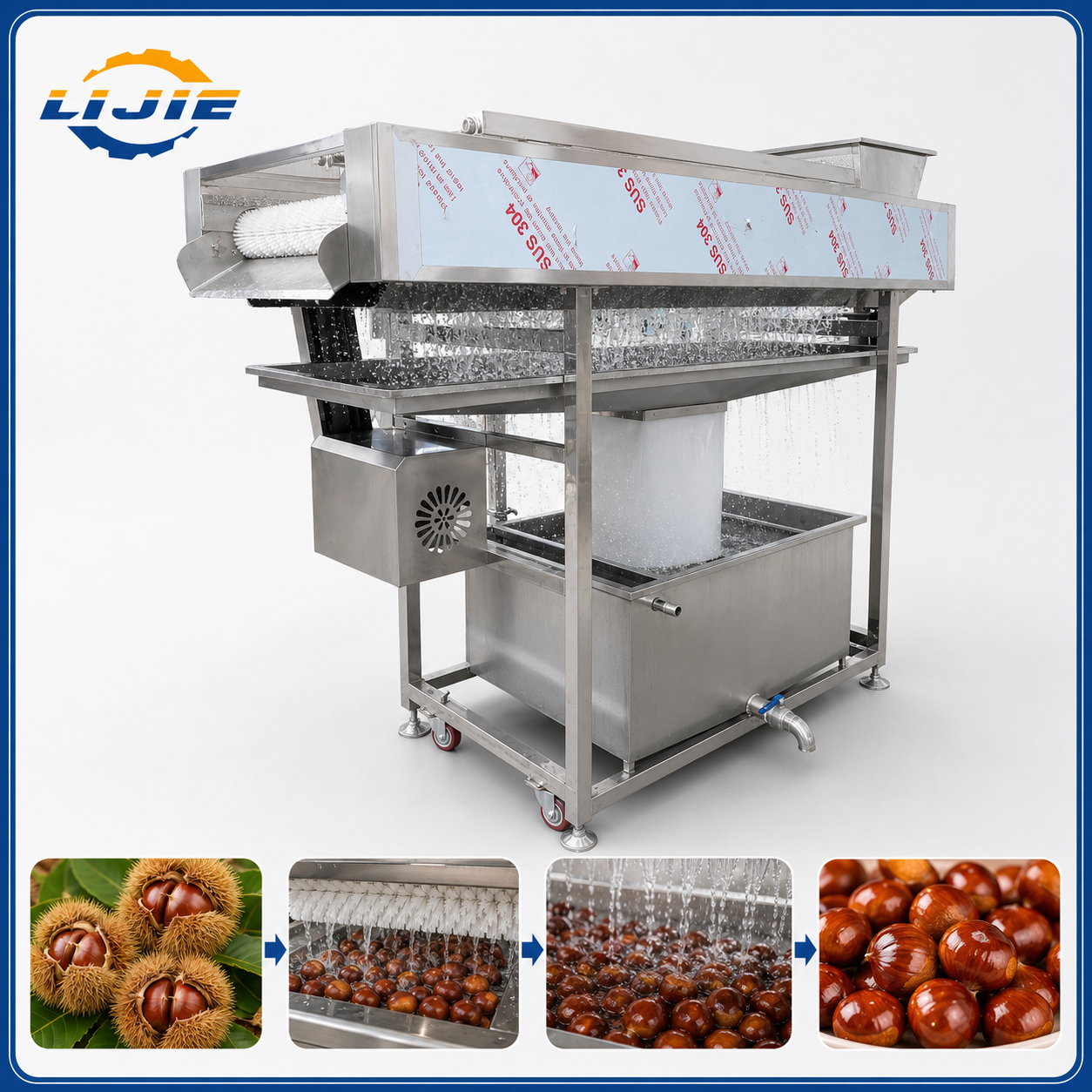

LJ Chestnut Brush Roller Washing Machine is a purpose-built industrial cleaning system engineered specifically for fresh chestnuts and hard-shell nuts. Unlike standard vegetable washers that lack the scrubbing power for tough nut shells, this machine combines high-density wear-resistant nylon brush rollers with multi-angle high-pressure water spray nozzles to aggressively yet safely remove stubborn mud, soil, and field debris — including dirt trapped deep in chestnut shell crevices.
The continuous conveyor design feeds chestnuts through multiple brush roller stations, ensuring 360-degree shell coverage and thorough cleaning. Fully fabricated from food-grade SUS304 stainless steel, this machine is the essential first-stage equipment for chestnut processing plants, roasted chestnut factories, and frozen chestnut export facilities worldwide.
2. Core Advantages & Features

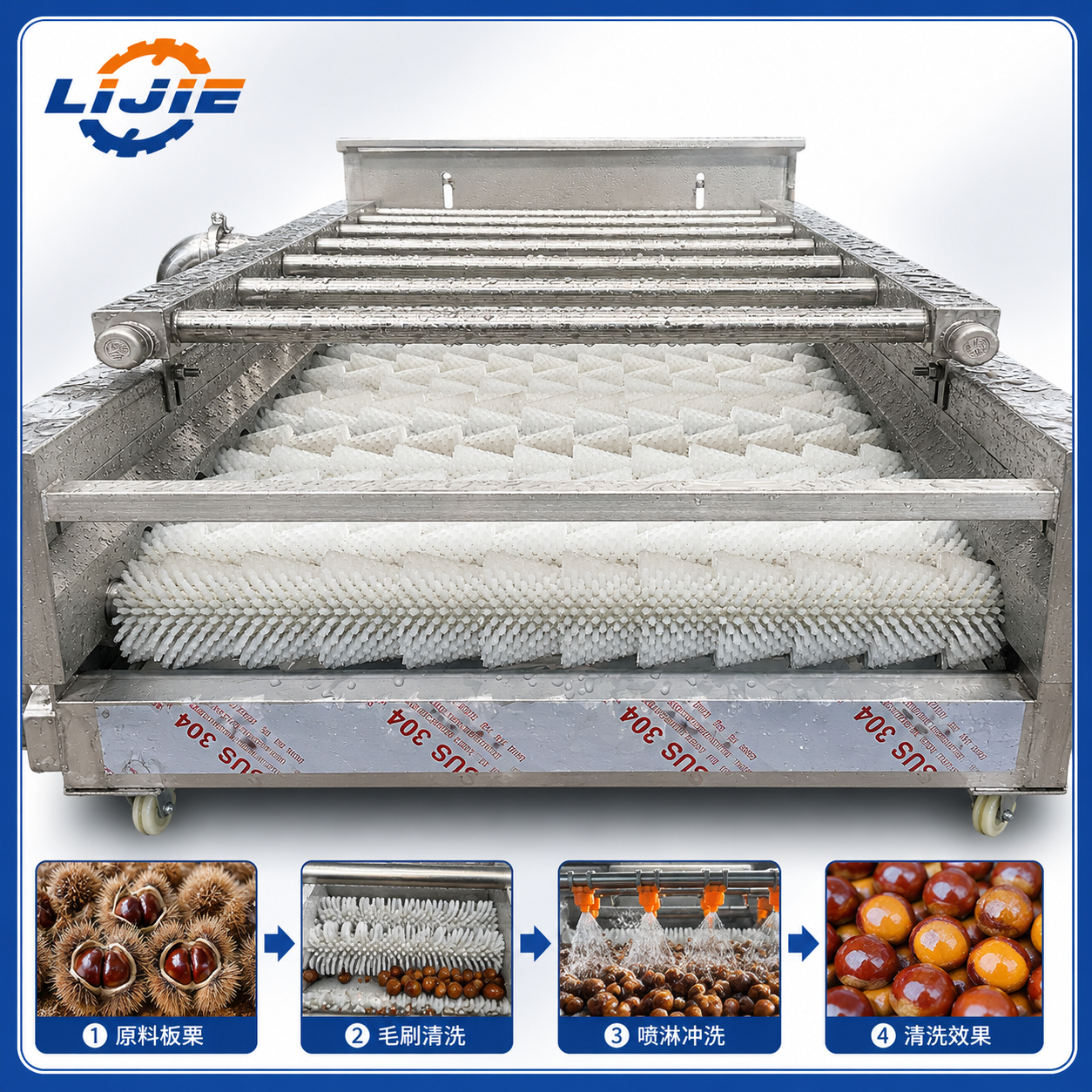

Specialized Hard-Shell Cleaning: High-density nylon brush rollers with optimized bristle stiffness provide aggressive scrubbing action to remove mud from chestnut shell crevices — without cracking or damaging the hard shell.

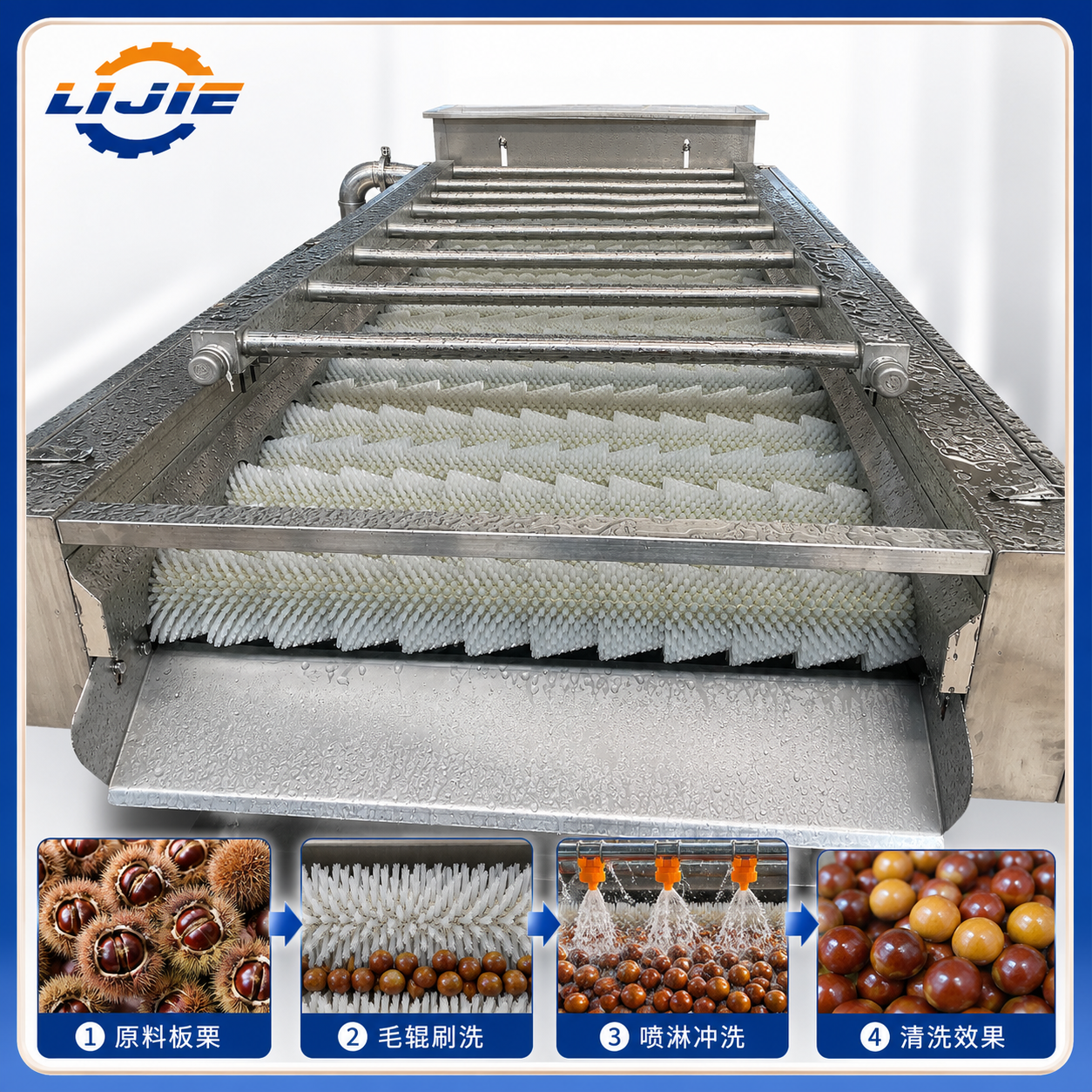

Multi-Stage Brush Design: Multiple brush roller stations (upper and lower) ensure 360-degree coverage, cleaning top, bottom, and sides of each chestnut in one pass.

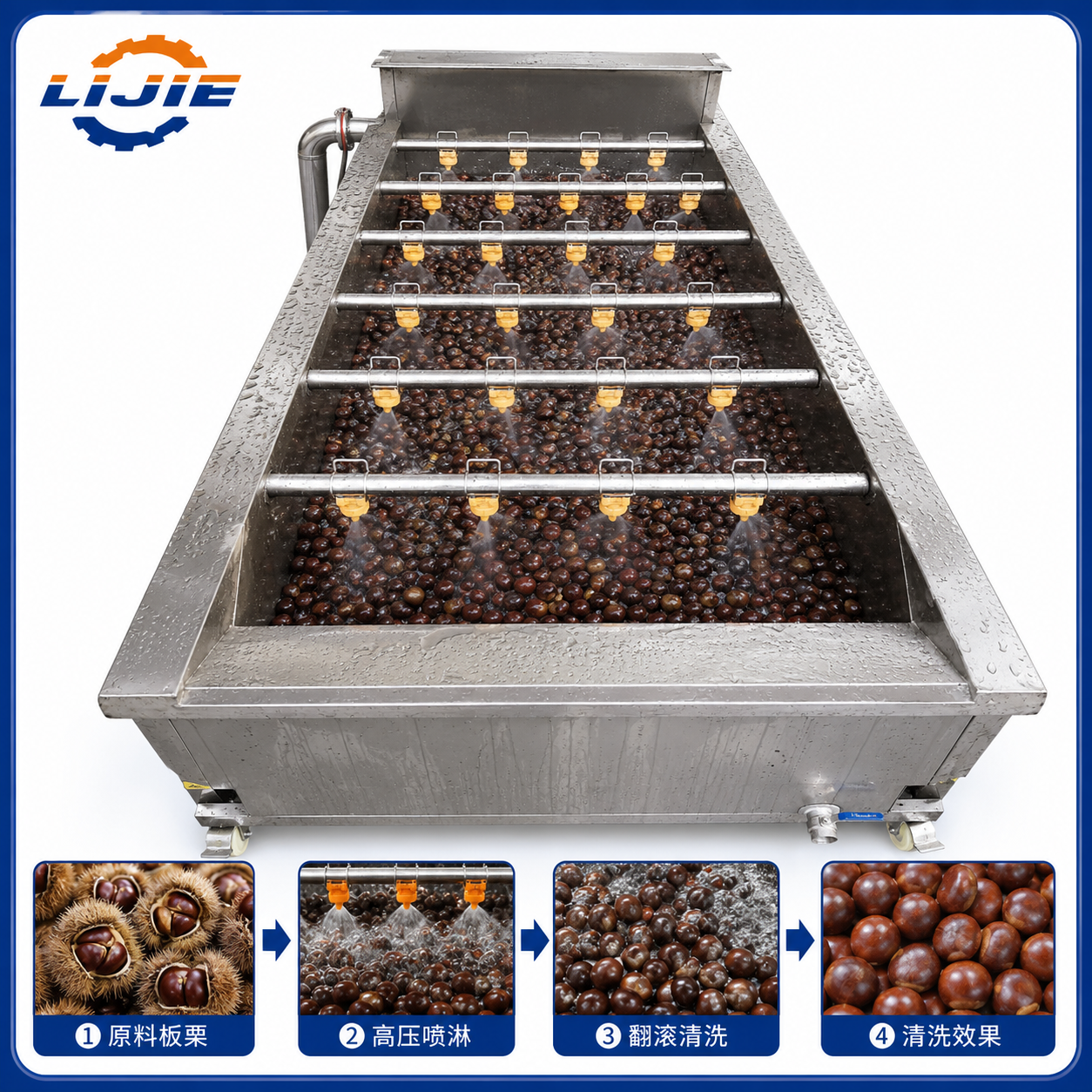

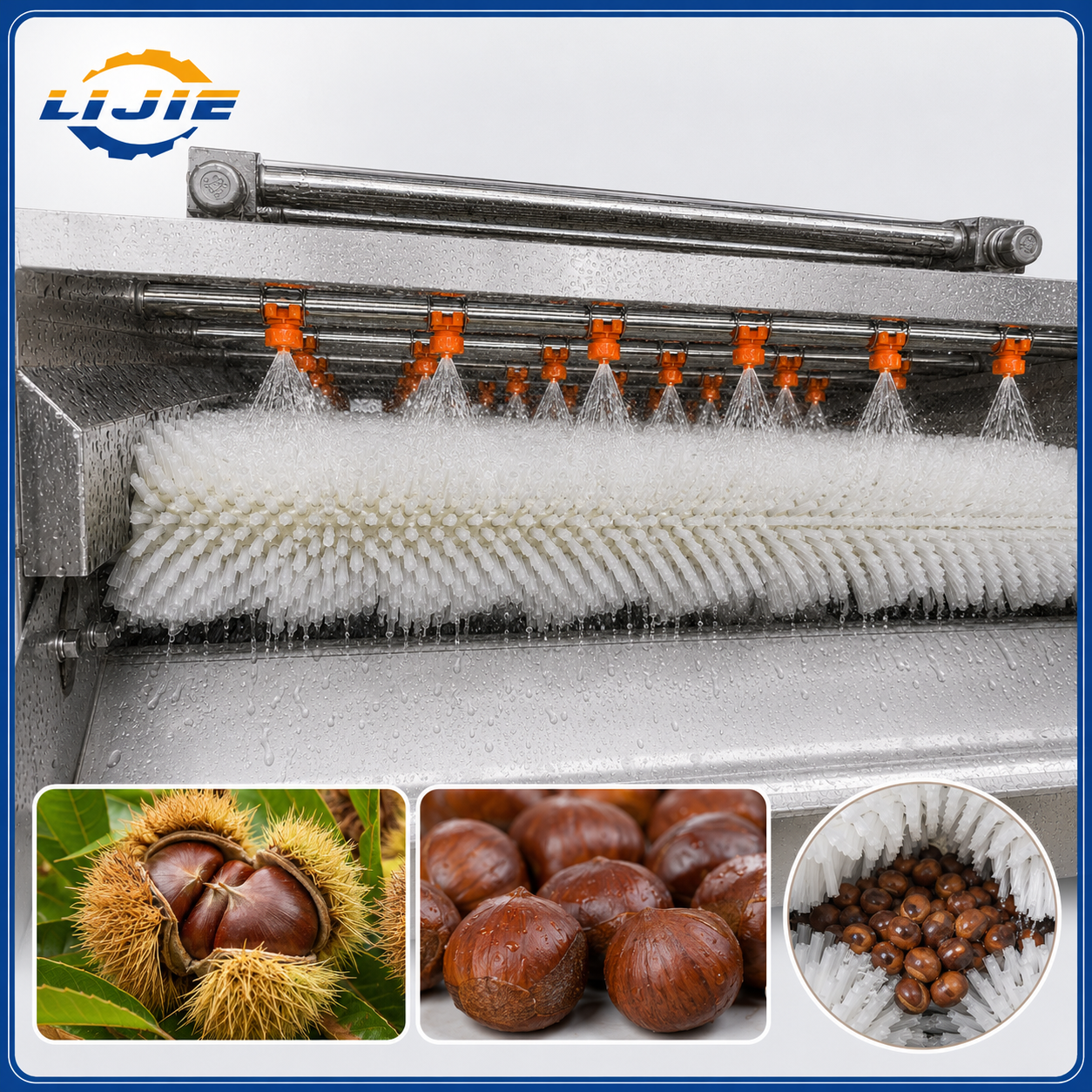

Integrated High-Pressure Spray: Water spray nozzles positioned above and between brush rollers continuously flush away loosened dirt, preventing re-contamination.
Variable Speed Control: Adjustable conveyor and brush roller speed to match different chestnut sizes, dirt levels, and throughput requirements.
Water Recycling System: Built-in sedimentation tank and filtration system captures soil and debris, reducing water consumption by up to 40%.
Food-Grade SUS304 Construction: Full stainless steel body with smooth weld-free surfaces for easy cleaning and maximum hygiene compliance.
Gentle Product Handling: Despite aggressive brush action on the shell, the machine's design prevents chestnuts from being crushed, scored, or damaged during the cleaning process.
3. Technical Specifications (技术规格)
| Product Name | Chestnut Brush Roller Washing & Cleaning Machine |
| Brush Roller Material | High-Density Nylon (Wear-Resistant, Food-Grade) |
| Production Capacity | 500kg/h - 3000kg/h (Customizable) |
| Number of Brush Rollers | 6-12 rollers (Customizable based on model) |
| Water Spray System | Multi-Angle High-Pressure Nozzles |
| Conveyor Speed | 0-15m/min (Variable Frequency Speed Control) |
| Power Supply | 380V / 50Hz (Customizable per local standards) |
| Water Consumption | 2-5m³/h (With Recirculation System) |
| Compatible Nuts | Chestnuts, Walnuts, Hazelnuts, Almonds, Macadamia |
| Warranty | 1 Year core components, lifetime technical support |
4. Applications & Suitable Scenarios
Chestnut Processing Plants: Primary cleaning stage before grading, roasting, or freezing — removes field mud and debris from freshly harvested chestnuts.
Roasted Chestnut Suppliers: Ensures clean, food-safe chestnuts ready for street vending or packaged retail distribution.
Frozen Chestnut Export Factories: Meets international food safety standards for exported frozen chestnuts to Europe, Middle East, and Southeast Asia.
Mixed Nut Processing Facilities: Also compatible with walnuts, hazelnuts, almonds, macadamia nuts, and other hard-shell nuts requiring brush cleaning.
Agricultural Cooperatives: On-farm post-harvest cleaning for direct sale or cooperative processing.
5. Operation & Maintenance Guide
Pre-Start Check: Verify water supply pressure, check brush roller rotation direction, ensure spray nozzles are unobstructed.
Normal Operation: Feed chestnuts evenly via conveyor, adjust speed and water flow as needed. Monitor discharge quality periodically.
Daily Cleaning: After production, flush the brush rollers, sedimentation tank, and conveyor belt with clean water. Remove accumulated debris from the filtration screen.
Weekly Maintenance: Inspect nylon brush bristle wear, clean or replace clogged spray nozzles, lubricate transmission bearings and chains.
Monthly Check: Verify motor and pump performance, inspect electrical connections, check belt tension, tighten all bolts and fasteners.
6. FAQ
Q: Will the brush rollers damage or crack the chestnut shells? A: No. Our nylon brush rollers are specifically designed with optimized bristle stiffness — firm enough to remove caked mud from shell crevices, but flexible enough to prevent shell cracking or surface damage.
Q: Can this machine wash other nuts besides chestnuts? A: Yes. The machine is compatible with walnuts, hazelnuts, almonds, macadamia nuts, and other hard-shell nuts. Brush roller speed can be adjusted for different shell hardness levels.
Q: How does the water recycling system work? A: Used water flows into a sedimentation tank where heavy soil particles settle. Filtered water is recirculated back to the spray system, reducing total water consumption by up to 40%.
Q: Can the machine handle very muddy chestnuts from the field? A: Absolutely. This machine is designed for post-harvest field conditions. For extremely muddy chestnuts, we recommend a pre-soaking stage or adjusting the conveyor to a slower speed for longer brush contact time.
7. About Our Company
Zhucheng Lijie Food Machinery Co., Ltd. was established in 2014, specializing in the research, development, manufacturing, sales and service of food processing equipment. Our core products include fruit and vegetable cleaning equipment, brush roller washing and peeling machines, frying and drying production lines, pasteurization and sterilization systems, and various industrial food machinery. With 65+ production lines deployed in 40+ countries over 10+ years, our equipment is trusted by nut processing plants, fruit exporters, and food manufacturers worldwide for reliable performance and durable construction.
