Product Advantage
High-efficiency quick freezing + Strong preservation ability (core technology): Utilizing an optimized air circulation system and low-temperature refrigeration technology, the temperature control accuracy reaches ±0.5℃, and the uniformity of air flow distribution has a CV value of ≤8%. It can complete single-piece quick freezing within 3 to 10 minutes in an environment ranging from -35℃ to -45℃. Its efficiency is 3 to 10 times that of traditional flat plate freezing and tunnel freezing. After quick freezing, the vitamin C retention rate of strawberries reaches 92.3%, the loss rate of fruit and vegetable juices is only 3.1%, and the taste restoration rate of aquatic products after thawing is above 95%. This effectively locks the original quality of the ingredients.
 |  |  |
Technical Parameters
| Weight | 3000KG |
| Freezing material inlet temperature | ≤ 15℃ |

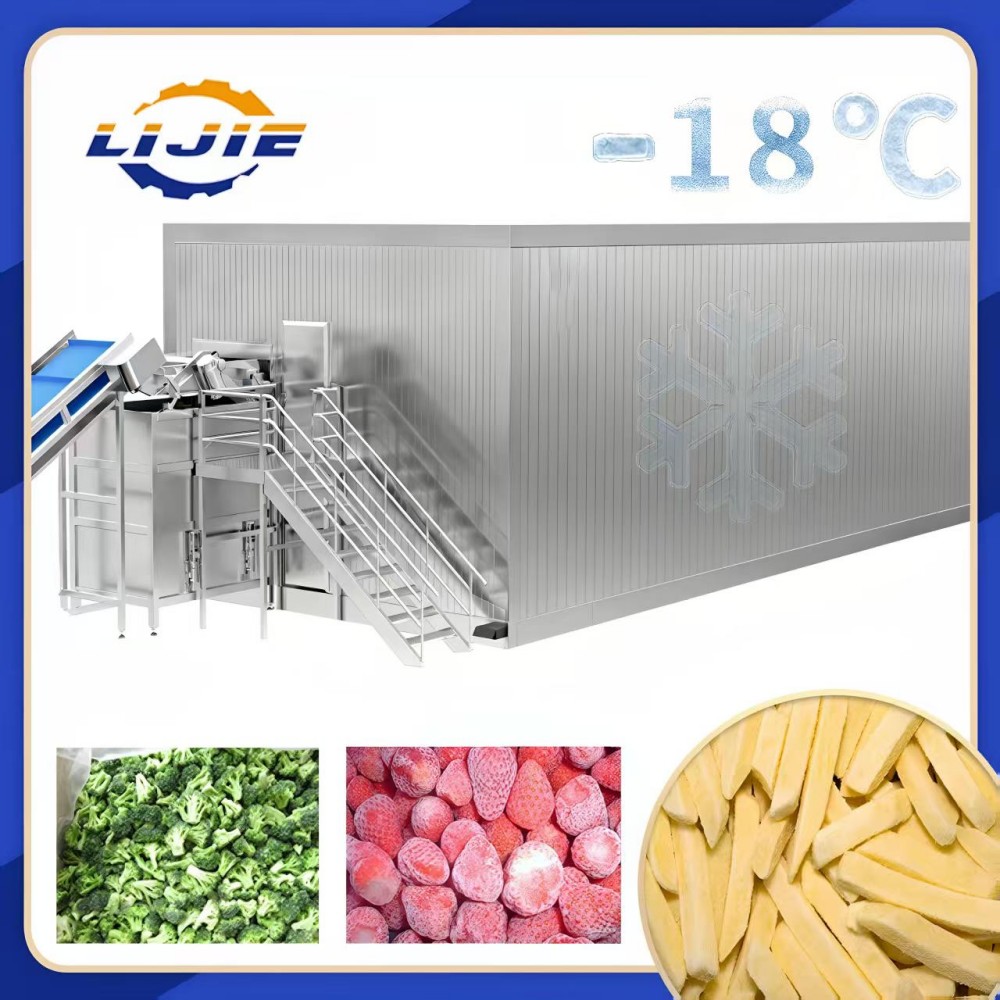

| Shipping center temperature | -18 degrees Celsius |
| Capacity requirement | ≥ 40kg/m³ |
| Core Technology | High-efficiency quick freezing + Strong Locking Preservation. Utilizing an optimized air circulation system and low-temperature refrigeration technology, the temperature control accuracy reaches ±0.5℃, and the uniformity of air flow distribution has a CV value of ≤8%. |
| Freezing Efficiency | Can complete single-piece quick freezing in -35℃ to -45℃ environment within 3 to 10 minutes, which is 3 to 10 times more efficient than traditional flat plate freezing and tunnel freezing. |
| Quality Retention | After third-party testing, the vitamin C retention rate of strawberries after quick freezing reaches 92.3%, the loss rate of fruit and vegetable juice is only 3.1%, and the taste restoration rate of aquatic products after thawing reaches over 95%. It can lock the original quality of the ingredients to the greatest extent with a thermal conductivity of ≤0.024w/m.k. |
| Pressure Resistance Requirements | Wall panels and roof panels: 150 to 200 kpa; Ground: ≥300 kpa |
| Absorption Rate | ≤ 4% |
| Dimensional Stability | < 1% (-30℃, 48h) |
| Self-extinguishing Time | ≤ 7 seconds |
| Placement Form | Directly placed on the conveyor belt |
| Freezing Time Adjustable | 8 to 30 minutes |
| Freezing Capacity | 500 - 600 kg/h (customized as needed) |
| Total Power of the Unit | 143.6 kw |

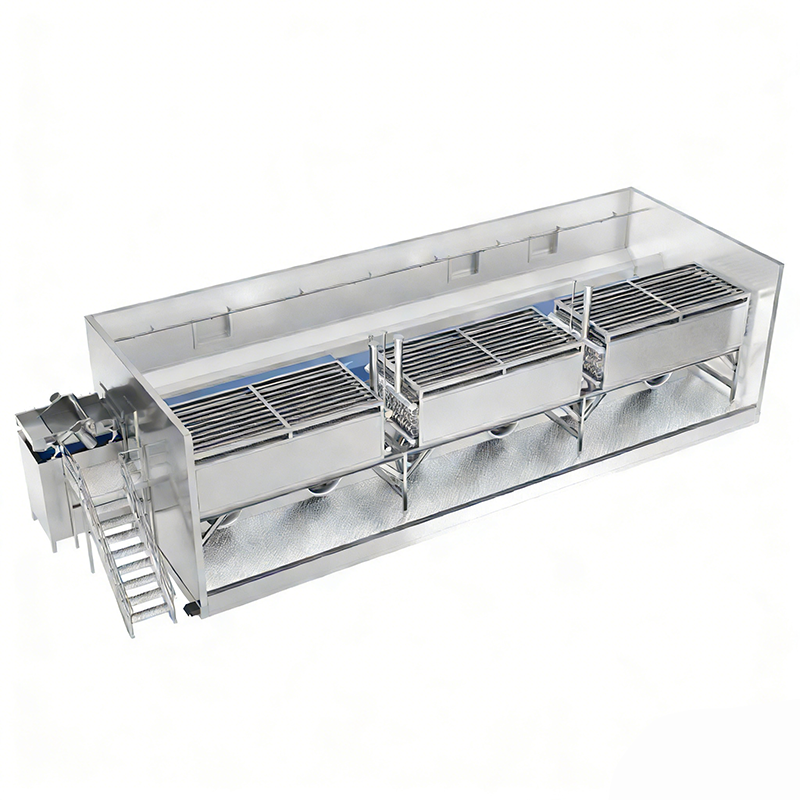

| Structural Form | Continuous type |
| Freezing Form | Blowing air freezing |

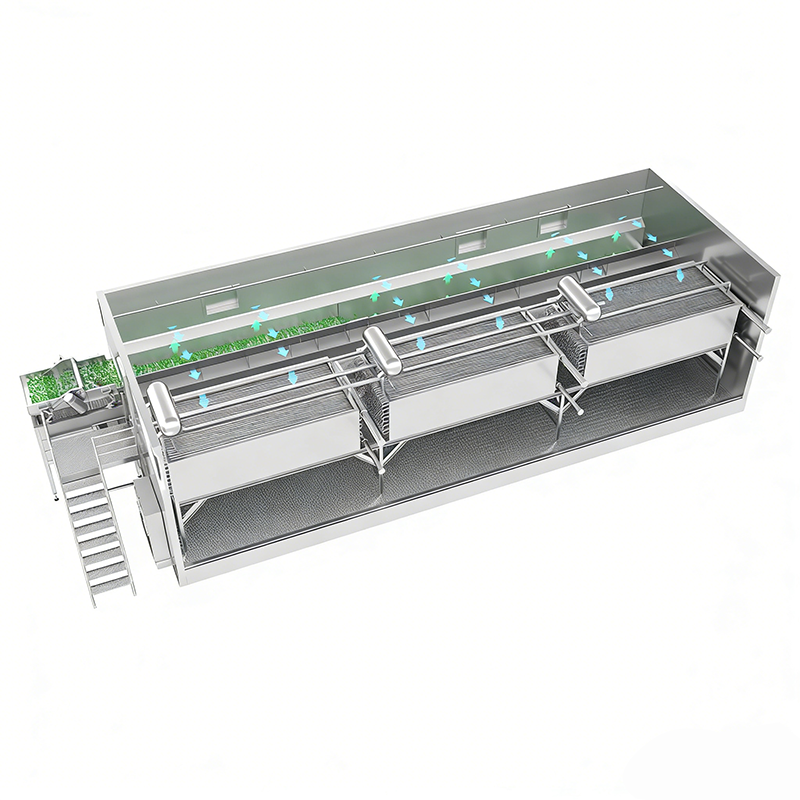

| Air Supply Mode | Air flow blowing on the lower surface |
| Overall Dimensions | 8300 × 4200 × 3300 mm (customized as needed) |
| Main Storage Body Length | 6000 mm |
| Conveyor Belt Width (Center Distance) | 1200 mm |
| Conveyor Belt Type | 304 stainless steel mesh belt |
| Feed Port Length | 1500 mm |
| Discharge Port Length | 800 mm |
| Number of Storage Doors | 2 |
| Storage Body Thickness | 120 mm |
| Polyurethane Density of Storage Plates | ≥ 40 kg/m³ |
| Configuration Voltage/Frequency | 380V/50HZ/3P |
| Installed Power | 20KW |
Product Uses
Wide compatibility, flexible production: It can be flexibly adapted to various foods, covering aquatic products (shrimp, squid rings, barbacoa fish fillets), fruits and vegetables (strawberries, blueberries, green beans, corn kernels, french fries), pre-prepared seasoned foods (steaks, chicken pieces, hot pot seasonings), pastries (buns, dumplings, frozen dough), and plant-based proteins and other emerging categories. It supports modular combination, and the production capacity can be flexibly customized from 300kg/h to 10,000kg/h, meeting the flexible production needs of small and medium-sized food processing plants and large-scale production enterprises.
Product Operate Guide
1. Start the equipment: Press the main start button to sequentially activate the air circulation system, refrigeration system, and conveying system. Once the equipment is running stably, the temperature reaches the preset value, and there are no abnormal noises, then start feeding the materials.

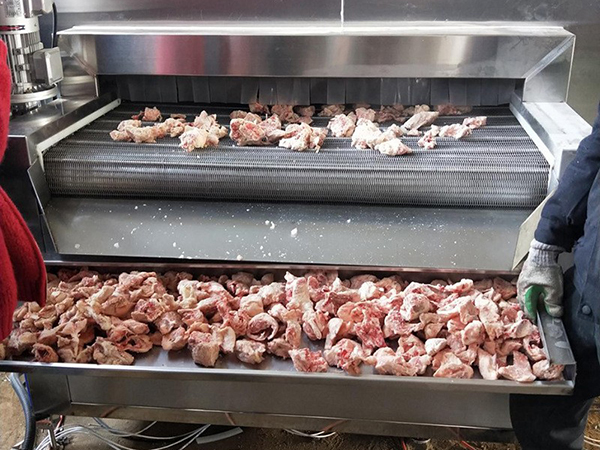

2. Feed materials: Uniformly and slowly pour the pre-treated ingredients into the feeding port, control the feeding volume to avoid accumulation and blockage, ensure that the ingredients are evenly distributed on the mesh belt, and achieve full fluidization freezing.
3. Real-time monitoring: During operation, closely observe the equipment status, pay special attention to temperature, wind speed, and the freezing effect of the ingredients. If there is uneven freezing, adjust the parameters in time; if there are abnormal noises, cold leakage, or other abnormalities, immediately press the emergency stop button to stop the machine for inspection.
4. Material collection and storage: After the ingredients complete rapid freezing, they are automatically transported through the discharge port, collected and packaged in time, and stored in a low-temperature cold storage to prevent the impact on quality due to thawing.
Product Video
FAQ
1. Q: Are you a manufacturer or a trading company?
A: Professional food machine manufacturer, 65 production lines have been used in 40 countries for more than 10 years.
2. Q: What's the price of your machines?
A: You can inquiry to us directly.
3. Q: What is your after-sales service?
A: We support one year warranty, free after-sales for life, and engineers respond to feedback 48 hours.
4. Q: Can we provide the formula to you?
A: We can provide basic formula .And help customer to produce good quality food according customer’s detailed formula.
