Product Advantage
1：Flexible cleaning, enhancing product efficacy
Bubble rupture + water flow swirling, similar to the "gentle brushing" technique used by humans, with a material damage rate of ≤ 3%. This method is also suitable for delicate fruits and vegetables/shellfish.
The cleaning efficiency is 5 to 10 times higher than that of manual cleaning. The cleaning degree is ≥ 95%. The removal of pesticides and impurities is more thorough.
2. Energy conservation and emission reduction, with significant cost reduction.

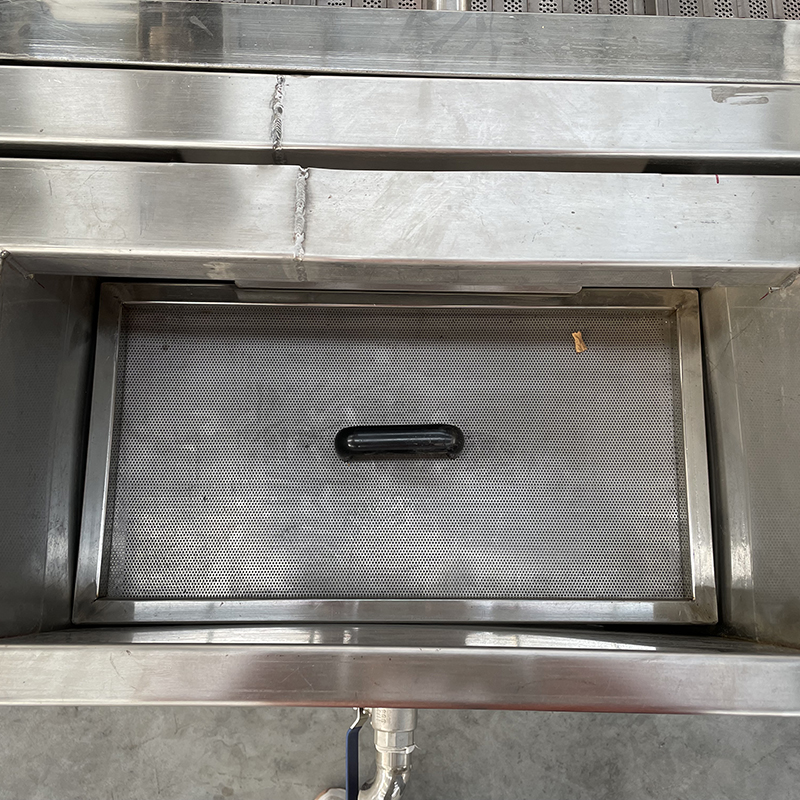

Water cycle filtration can achieve a water-saving rate of 60% to 80%, significantly reducing water expenses.
Variable-frequency motor + low-power fan, energy consumption is 30% lower than that of traditional equipment. It saves electricity when adjusting speed as needed.
Automation replaces manual labor, saving 80% of manpower and being suitable for large-scale production.
3. Intelligent adaptation, easy operation

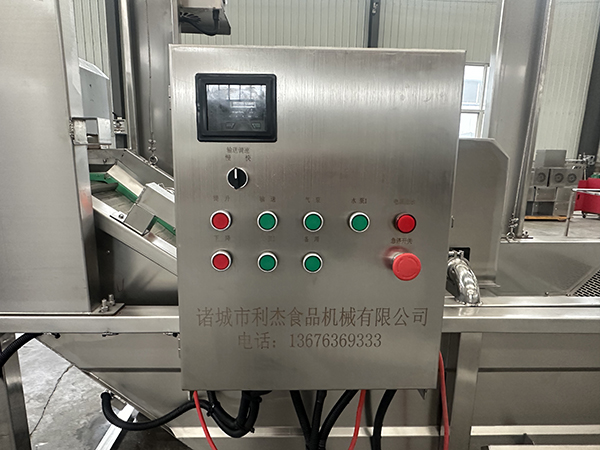

One-click start + PLC/Touchscreen, automatically completing the entire process of cleaning, draining and spraying.
The conveying speed, bubble intensity and cleaning time can be adjusted continuously, and it is suitable for leafy vegetables, roots and stems, aquatic products, etc.
Fault warning + emergency stop interlock, making operation safer and enabling beginners to master it quickly.
4. Hygienic and durable, with easy maintenance.
The entire machine is made of 304 stainless steel, which is corrosion-resistant.
 |  |  |
Technical Parameters
| Parameter Categories | Small Model (Small Shop/Laboratory), Medium Model (Small Factory/Central Kitchen), Large Model (Large Factory/Assembly Line), Customization Range |
| Processing Capacity | 50 - 200 kg/h, 300 - 800 kg/h, 1000 - 3000 kg/h, 50 - 5000 kg/h (adjustable as needed) |
| Dimensions (L × W × H) | 1800 × 800 × 1200 mm, 3000 × 1200 × 1500 mm, 5000 × 1500 × 1800 mm (length 1.5 - 10 m, selectable) |
| Cleaning Tank Dimensions (L × W × H) | 1500 × 600 × 500 mm, 2500 × 1000 × 600 mm, 4500 × 1300 × 700 mm (width 600 - 2000 mm) |
| Net Belt Width | 500 mm, 800 mm, 1200 mm, 500 - 2000 mm |

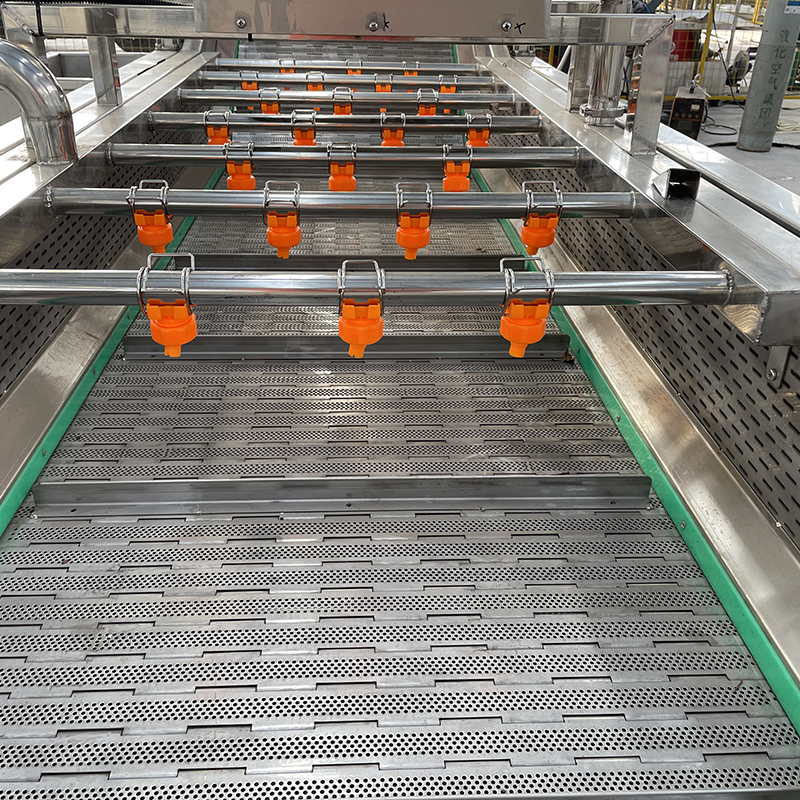

| Net Belt Material | 304 stainless steel net belt (hole diameter 2 - 5 mm), 304 stainless steel net belt (hole diameter 3 - 8 mm), 304 stainless steel net belt (hole diameter 5 - 10 mm), mesh/chain plate selectable |
| Net Belt Speed | 0.5 - 3 m/min (stepless adjustable), 0.5 - 5 m/min (stepless adjustable), 0.5 - 8 m/min (stepless adjustable), variable frequency speed regulation |
| Bubble Fan Power | 1.5 - 2.2 kW (1 unit), 3 - 4 kW (2 units), 5.5 - 7.5 kW (3 - 4 units) Number/Power of Fans Adjustable |

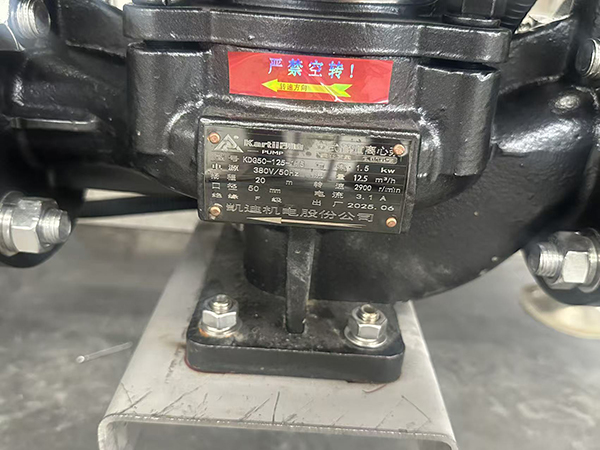

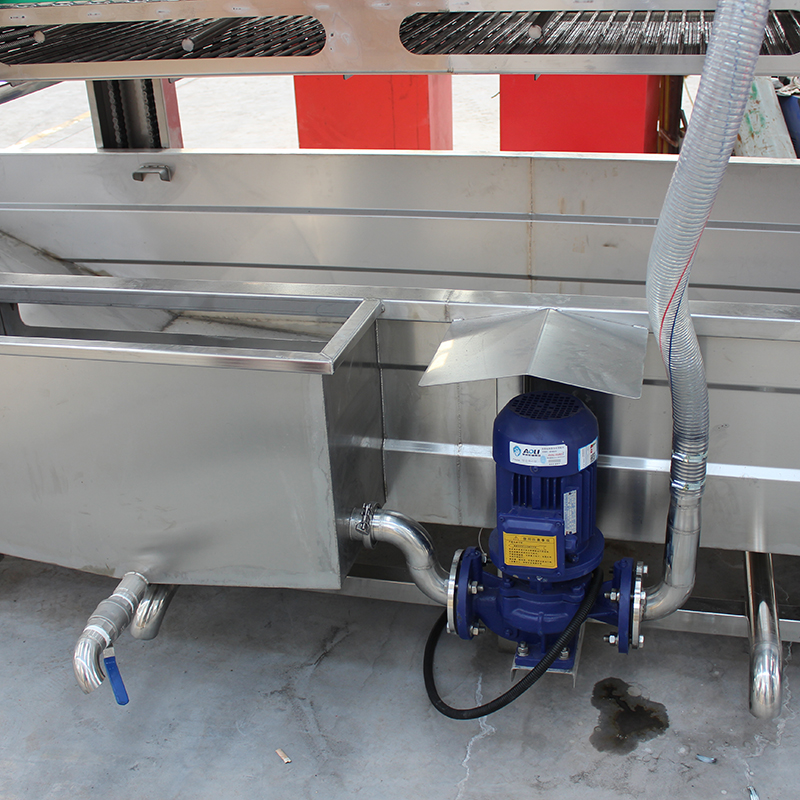

| Circulation Water Pump Power | 0.75 kW, 1.5 kW, 3 kW, 1 - 5.5 kW selectable |
| Spray Pump Power | 0.55 kW, 1.1 kW, 2.2 kW, 0.55 - 3 kW selectable |
| Total Power | 3 - 5 kW, 8 - 12 kW, 18 - 30 kW (add-on function power adjustable as needed) |
| Voltage/Frequency | 220V/50Hz (single phase), 380V/50Hz (three phase), 380V/50Hz (three phase), 220V/380V selectable |
| Water Tank Capacity | 300L, 800L, 2000L, 300 - 5000L |
| Cleaning Time | 1 - 5 min (adjustable), 1 - 8 min (adjustable), 1 - 10 min (adjustable), 0.5 - 15 min free setting |
| Water Pressure Requirements | 0.2 - 0.4 MPa, 0.2 - 0.4 MPa, 0.3 - 0.5 MPa, compatible with conventional water pressure |
Product Uses

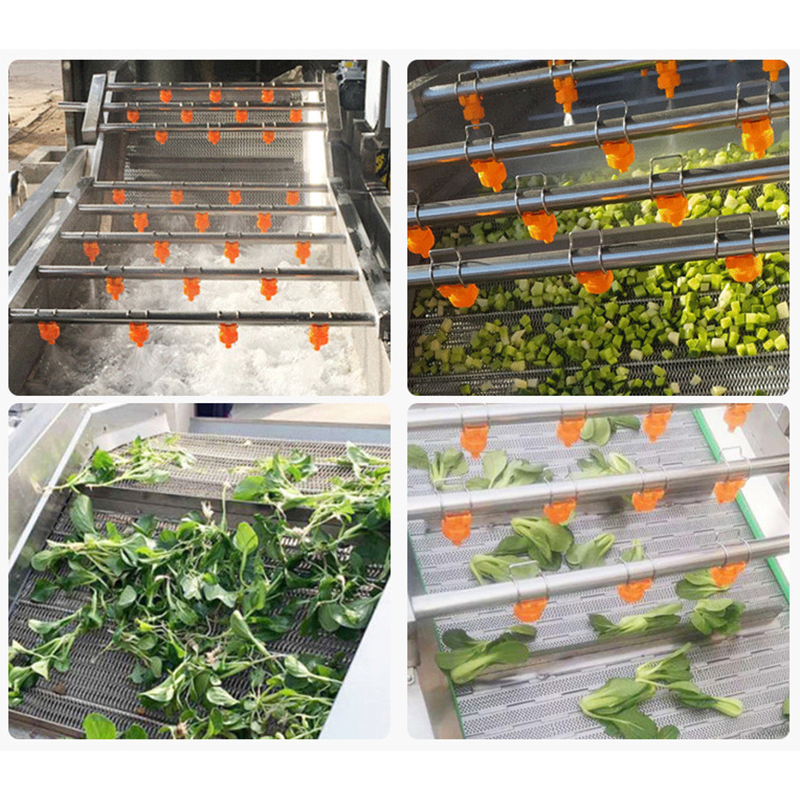

Fruit and vegetable processing: Leafy greens, berries, root vegetables, prevent damage, remove pesticide residues;
Seafood: Shellfish, shrimp, small fish, remove sand and remove the fishy smell;
Pre-prepared dishes / Central kitchen: Batch processing of fresh vegetables, suitable for assembly lines;
Herbal medicines: Clean while retaining active ingredients to reduce waste;
Snack foods: The raw materials are cleaned before frying to ensure product quality.
Product Operate Guide
1. Equipment inspection
Appearance: The entire machine is made of 304 stainless steel, without any deformation or rust. The screws are securely fastened, and the mesh belt is free from damage or deviation.
Safety: The emergency stop button, leakage protection device, splash-proof guard are all in good condition. The power cord is undamaged and the grounding is secure.

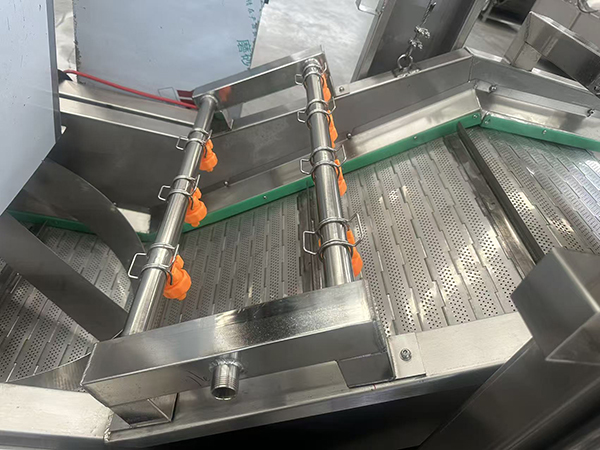

Trial operation: The machine is started for 1 to 2 minutes. The fan/pump operates smoothly without any noise. The mesh belt can be adjusted smoothly. The spray is uniform and free from blockages.
Pipelines: The inlet/outlet/circulation pipelines are unobstructed, the valves operate smoothly, and there is no leakage.
2. Material Preparation
Pre-treatment: Remove impurities (rotten leaves, stones), and cut large pieces of material to the width suitable for the conveyor belt to prevent blockage.
Control of quantity: The single feed is uniform and does not exceed the net belt's carrying capacity (≤ 70% of the net belt's area), preventing accumulation and blockage.
Temperature: The main method is to clean at room temperature. For heating cleaning, it is necessary to preheat to 30-60℃ (this is more effective for removing pesticide residues)
3. Environment & Personnel
The ground is flat and dry. There is a minimum of 50cm of operating space around the equipment, and there are no debris piled up.
Wear slip-resistant shoes + waterproof apron + gloves. Keep your hair tied up. Do not wear loose clothing.
